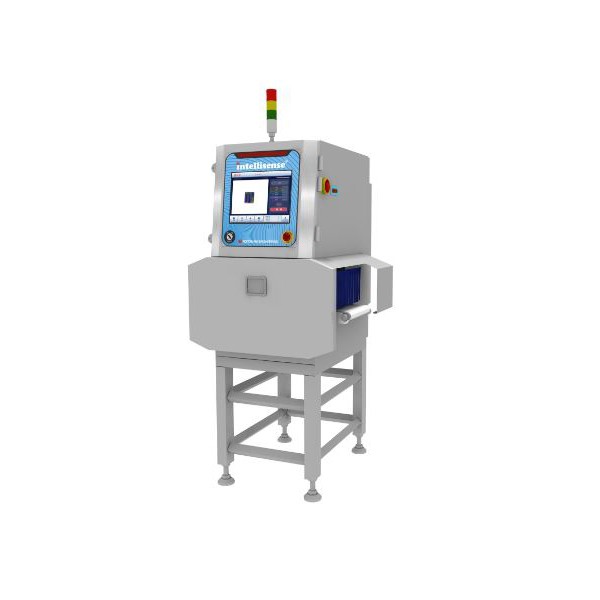

The x ray metal detector food is based on intelligent image analysis technology, which can effectively detect small foreign objects in products. The device can also achieve multi-point omission detection, shielding segmented detection, liquid level height detection, high-speed rejection detection, remote control, comprehensive real-time management and other functions. HACCP and product quality management have been widely applied in industries such as food, pharmaceuticals, and beverages, and have established a good reputation for their excellent performance.
Application scope:
Food testing device can detect high-density foreign objects such as metals, non metals, such as metals, glass, stones, bones, ceramics, hard rubber, hard plastics, etc; The product has a wide range of applicability, such as plastic packaging, aluminum foil packaging, glass filling, metal canning, and bulk material testing.
Product features:
1. Comprehensive detection: capable of detecting high-density foreign objects such as metals, glass, stones, bones, ceramics, hard rubber, hard plastics, etc; The product has a wide range of applicability, such as plastic packaging, aluminum foil packaging, glass filling, metal canning, and bulk material testing.
2. High speed detection: With globally leading computing processing capabilities and detection speeds of up to 120 meters per minute, it greatly meets production efficiency.
3. Excellent detection accuracy ensures product quality and protects user brand reputation.
4. Rich extended functions: multi-point omission detection, defect detection (product defects, packaging defects) shielding segmented detection, liquid level height detection, high-speed rejection detection, remote control, comprehensive real-time management and other functions.
5. Easy to operate: 15 inch touch screen operation, self-learning function, intuitive and simple operation experience. Automatically save detection images for easy tracking and tracing by users.
6. Green and environmentally friendly design concept: All accessories meet food requirements, and the radiation leakage rate complies with the US FDA and EU CE standards.
More X-ray food detection devices
ASXR-100D Food X-ray Machine
ASXR-200D Food X-ray Machine
ASXR-300D Food X-ray Machine
ASXR-500D Food X-ray Machine
ASXR-400D Food X-ray Machine
ASXR-600D Food X-ray Machine
Hot Tags: x ray metal detector food, China x ray metal detector food suppliers, manufacturers, factory, mobile x ray unit, Electric heating wire perspective X ray machine, mobile x ray machine, small x ray machine, Metal Detecting Machine, hand held metal detector for gold
Technical parameter
Model: AS-7000D x-ray metal detector food
Best detection accuracy: lead: 0.2mm, stainless steel ball: 0.4mm, ceramic ball: 0.8mm, bone: 0.8mm, glass: 1.0mm
Detection size parameters: maximum detection width of 180mm
Maximum detection height: 285mm
Maximum size: 350 * 310mm (width * height)
Conveyor bandwidth: 200mm
Ground clearance height of conveyor belt: 850 ± 30m
Conveyor speed: 10-90 meters per minute
Load bearing capacity: 10Kg
X-ray output: 40-150kVp/2-7.5mA
X-ray leakage:<3 μ Sv/h
Detector type: Linear scan
Illumination direction: Dual light source comparison type
Pixel size: 0.4mm
Display: 15 inch LCD touch screen
Operation method: Touch screen operation
Software: Intellisense X-ray Inspection System
System: Windows 7
Support data interface: USB
Parameter setting: self-learning/manual adjustment
Shell material: SUS304
Material of conveyor belt: PU belt
Air conditioner: Internal circulation industrial air conditioner, automatic temperature control
Protection method: detachable protective curtain
Cleaning method: Tool free disassembly of conveyor belt for easy cleaning
Power supply: AC220/230V, 50/60Hz
Environmental requirements: Temperature: 5-35 ℃/Humidity: 30-85% RH (no condensation)
Machine size: 2000 * 1300 * 2015mm (length * width * height)
Machine weight: 600Kg
