The vibrating metal separator is used to detect and separate all metals mixed in plastic raw materials, including iron and non-ferrous metals (such as copper, aluminum, stainless steel), etc. Due to the mixing of metal impurities in the process of crushing and recycling old materials, accidents may occur during production, resulting in increased downtime and maintenance, leading to increased costs and affecting production efficiency. Especially suitable for the food, pharmaceutical, powder, granule and other product industries. Customized on demand: plastic metal separator, food metal separator, pharmaceutical metal separator, particle metal separator, powder food metal separator.
Customization Description: The company has its own factory and can provide customization services. Everyone can customize styles that meet their needs based on the product, production line, and placement space.
Product features:
Multiple calibers to choose from: Metal separators of different calibers can be customized.
Fast speed and high precision: It can quickly separate various metals such as steel, copper, stainless steel, etc., and can also separate long metal wires.
High sensitivity detector: Built in high-sensitivity detector, quickly separates various metal impurities.
Vibration screen feeding: The machine body adopts vibration feeding to avoid blockage caused by crushed materials.
Why use a metal separator?
1. Damaged screw, blocked nozzle, mold flow channel (hot runner);
2. Increase the pressure of the hot runner, causing blockage in the plastic flow channel;
3. Metal scratches on molds increase maintenance burden;
4. The finished product contains metal, causing short circuits and lack of insulation;
5. Scratching the surface of the finished product can affect its quality.
Working principle diagram and feeding diameter:
Hot Tags: vibrating metal separator, China vibrating metal separator suppliers, manufacturers, factory, picker x ray machine, hand held metal detectors, handheld security metal detector, mobile xray equipment, pediatric xray machine, Footwear Metal Tester
Product parameters:
Product model: FLQ-660 metal separator (vibration type)
Overall dimensions: 85cm in length, 90cm in width, and 180cm in height (customizable)
Cutting diameter: 50mm (customizable)
Detection accuracy: 0.6mm
Separation time: 0.2-2.5 seconds
Discharge time: adjustable from 0.3-5 seconds
Production capacity: 500kg/HR
Gas consumption: 0.6 liters per separation action
Compressed air: 3~5Bar
Working voltage: 220V
Power: 100W
Environmental temperature: -10~60 degrees Celsius
Detection substance and usage method: Free fall detection of plastic particles, plastic fragments, bulk materials, and recycled materials
Detail drawing of metal separator:

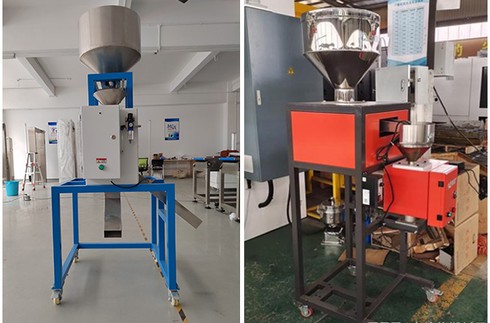

Application of metal separator products:
